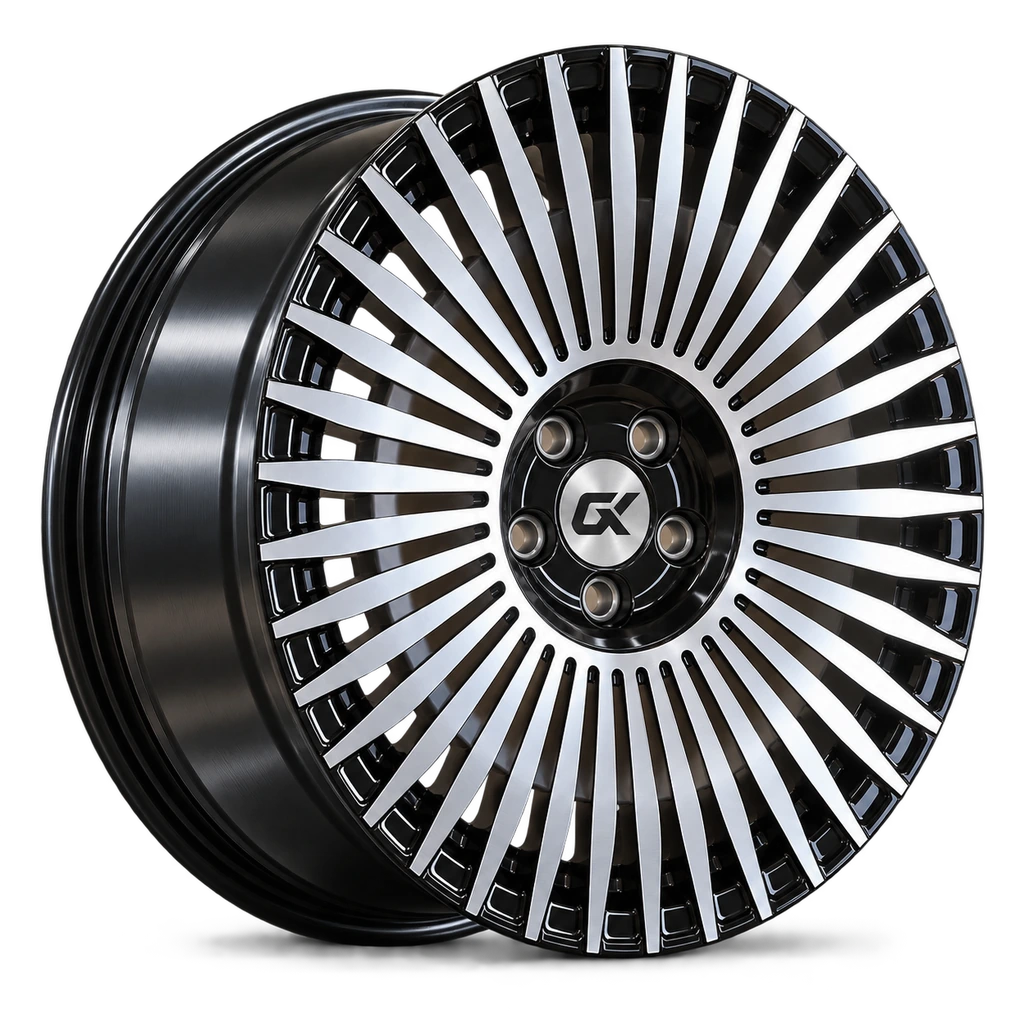

GXR05
Explore GRIX GXR05 in published 17 / 18 / 19 / 20 / 21 / 22 inch sizes. View bolt patterns, offsets and finishes, then discuss vehicle and brake clearance fitment before ordering.
Published specifications
Vehicle fitment must be confirmed for the specific vehicle and brake configuration.
| Size | PCD | ET (mm) | Center bore (mm) |
|---|---|---|---|
| 19 × 8.5″ | 5×112 | 32 | 66.45 |
| 20 × 9″ | 5×112 | 30 | 66.45 |
| 18 × 8″ | 5×120 | 30 | 72.6 |
| 18 × 9″ | 5×120 | 35 | 72.6 |
| 18 × 8″ | 5×112 | 30 | 66.56 |
| 18 × 9″ | 5×112 | 35 | 66.56 |
| 17 × 7.5″ | 5×112 | 38 | 66.6 |
| 18 × 8″ | 5×112 | 40 | 66.6 |
| 19 × 8.5″ | 5×112 | 36 | 66.6 |
| 19 × 9.5″ | 5×112 | 43 | 66.6 |
| 20 × 8.5″ | 5×112 | 36 | 66.6 |
| 20 × 9.5″ | 5×112 | 43.5 | 66.6 |
| 21 × 10″ | 5×112 | 45 | 66.6 |
| 21 × 11″ | 5×112 | 42 | 66.6 |
| 22 × 10″ | 5×112 | 43 | 66.6 |
| 22 × 11″ | 5×112 | 47 | 66.6 |
| 18 × 8″ | 5×120 | 35 | 67.1 |
| 19 × 8.5″ | 5×120 | 38 | 67.1 |
| 19 × 8.5″ | 6×120 | 37 | 66.9 |
| 19 × 8.5″ | 5×120 | 38 | 72.6 |
| 20 × 9″ | 5×120 | 45 | 72.6 |
| 21 × 9.5″ | 5×120 | 45 | 72.6 |
| 22 × 9.5″ | 5×120 | 45 | 72.6 |
| 19 × 8.5″ | 5×108 | 40 | 63.4 |
| 20 × 8.5″ | 5×108 | 40 | 63.4 |
| 21 × 9″ | 5×108 | 40 | 63.4 |
| 21 × 9.5″ | 5×108 | 40 | 63.4 |
| 20 × 8.5″ | 6×139.7 | 30 | 78.1 |
| 22 × 9″ | 6×139.7 | 30 | 78.1 |
| 20 × 8.5″ | 5×150 | 35 | 110 |
| 21 × 9″ | 5×114.3 | 37.5 | 70.5 |
| 18 × 8″ | 5×112 | 38 | 67.1 |
| 19 × 8″ | 5×112 | 38 | 67.1 |
| 18 × 8″ | 5×114.3 | 38 | 67.1 |
| 19 × 8.5″ | 5×114.3 | 36 | 67.1 |
| 20 × 8.5″ | 5×114.3 | 36 | 67.1 |
